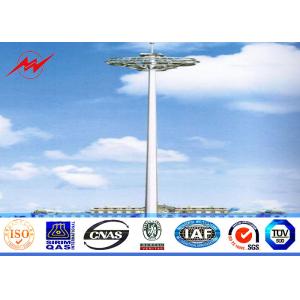

15M octagonal LED High Mast Pole with winch for airport lighting
Quick Information
High mast with raising & lowering gear system is designed for large
outdoor areas lighting such as junctions, crossings, roundabouts,
flyovers, etc. The raising and lowering gear system improves the
maintenance or replacement of the lamps without any hindrance to
traffic flow. This system brings down the lamps along with the
entire Head Assembly unit for lamp replacement. Raising & lowering
gear system
Consists of the following major parts:
Head Frame
Luminaries Ring
Winch
Portable power tool or electrical motor.
Quick Product Description-High Mast Lighting Pole
| Item | 18 MTR | 16 MTR |
|---|
| Material Construction | Q345(Gr50) | Q345(Gr50) |
| No. of Longitudinal Welds | Single | Single |
| Cross section of mast in polygon((No. of Sides) | Octagonal,dodecagon,hexadecagon | Octagonal,dodecagon,hexadecagon |
| Thickness | 4mm,6mm,8mm,10mm or customized design | Octagonal,dodecagon,hexadecagon |
| Individual Section’s Length | 9375mm | 4mm,6mm,8mm,10mm or customized design |
| Base & Top dia (OAF) | 422/200mm | 8300mm |
| Thickness of galvanization(Average) | 86 Microns | 422/200mm |
| Size of opening door at base | 360 x 1400 mm | 360 x 1400 mm |
| Size of base plate diameter | 625 mm | 625 mm |
| Size of base plate thickness | 32 mm | 32 mm |
| Number of foundation bolts | 8 | 8 |
| Bolt diameter | 28 mm | 28 mm |
Application
Truck and bus terminals
railyards
ship docks
ferry terminals
airports
prisons
industrial and commercial sites
international borders
parking lots
Lamp Type:
ACCESSORIES
Mast with continuous tapered polygonal cross section have high load
bearing strength oscillation due to wind speed and related stress
are fully taken care in the design.
IMPORTANT TECHNICAL FEATURES
FIXED TYPE HEAD FRAME :
Designed with larger Dia. Non corrosive aluminum pulley system for
longer life and perfect balancing.
WINCHES :
Winch designed with gear ration 53:1 and without break of clutches.
These are self lubricated for sustained trouble free life.
FINISH :
The complete mast with component is fully hot dip galvanized for
longer life.
LANTERN CARRIAGE :
We specialize in custom built design, standard lighting design and
various types and shapes. The lantern carriage is supported with
three numbers flexible 6 sq. mm. S.S. wire ropes from the
distributors that can be elevated/lowered electrically and
mechanically.
Anchor Bolt Type
OPTIONAL :
The most can be supplied with timer / photo sensor panel for auto
control.
Options:
• The High Mast is available in various length, diameters and hole
arrangements.
• Multisided or Tapered round variations.
• The High Mast is available in base plate mounted or direct bury
installed.
• All High Masts are hot dip galvanized according to EN 1461, and
can be powder coated or painted.
• Additional service doors.
• Pre-drilling for removable safety steps is available.
Application:
Company Introduction
Established in the year 1991, we “Jiangsu Milky Way” are based in
Jiangsu, China.
We are the one of the leading manufacturers and suppliers of a wide
range of electric equipments like:
lighting fixtures, poles, luminaries & other accessories that
include: High Mast Poles, Octagonal Poles, Decorative Poles, Swaged
Poles & Bracket Design, Commercial & Decorative Luminaries, CFL
Luminaries, Industrial Highway Luminaries, Street Light Luminaries,
Post Top Luminaries, Flood Light Luminaries, Bulkhead Luminaries,
Plant Light Luminaries, Accessories.
The entire range of equipment is manufactured using superior
quality raw material and ensures reliability.
These products are extensively used in Offices, Schools & Colleges,
Residential Complexes, Resorts, Hotels, Industries, Highways,
Petrol Pumps, Yard Lighting & Stadiums.
